Home > Solar Radiation Sensors >

2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring

Product Categories
Beijing Guoxinhuayuan Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring

Place of Origin : Beijing, China

Brand Name : BGT

Model Number : BGT-ZW

Power : Electronic

Product name : Solar UV sensor

Spectral range : 280~400nm

Measuring range : 0~400mW/m2

Power supply : 5V/12V/24VDC

Output method : 4~20mA /0~2.5V /0~5V/RS485

Accuracy : ±5% rdg

Response time : ≤ 1s(99%)

Cosine response : ≤ 4% (When the sun Angle of 30°)

Work environment : Temperature: -50℃~50℃; Humidity: ≤100%RH

Packaging Details : Carton

Price : $178.80/pieces 1-19 pieces

MOQ : 1 piece

Contact Now

Please Attention
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
Product Description

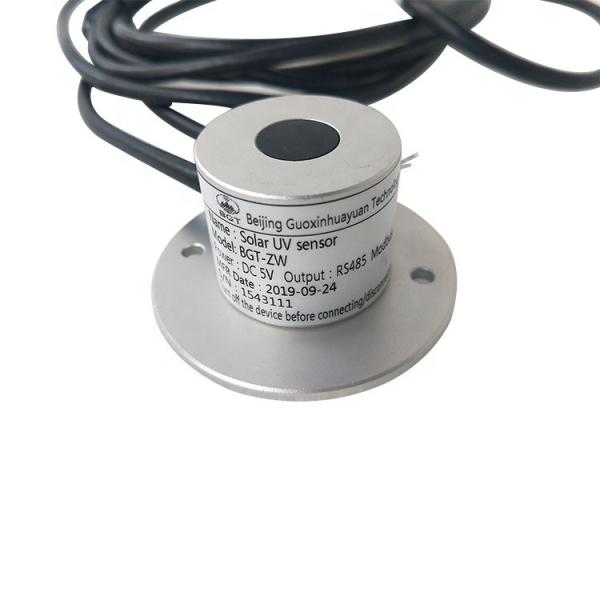

BGT-ZW Solar Ultraviolet Radiation (UV) Sensor (Transmitter)

BGT-ZW Solar UV Sensor adopts the photoelectric detector to receive the ultraviolet wave electrical signal. This product is one kind of precision instruments which is used to measure the solar ultraviolet radiation from the atmosphere (UVAB wavelength range), used in conjunction with the data logger, which can provide information on the public concern: the UV index, UV erythema measuring, the effects of the UV on person health and UV special biology and chemistry. Therefore, it is highly valued in meteorology, industry, architecture and medicine, and widely used in the study of erythema dose caused by exposure, comprehensive environmental ecological effect, climate change and ultraviolet monitoring and prediction
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
Technical Parameters
Item No.
BGT-ZW
Spectral range
280~400nm
Power Supply
DC5V/12V/24V
Measuring range
0-400W/m2
Output method
0-2.5V/0-5V/4-20mA/RS485
Accuracy
±5% rdg
Response time
≤1s
Cosine correction
≤±4%(Solar elevation angle=30°)
Non-linear
≤±3%
Ingress Protection
IP65
Material(Shell)
Aluminum
Working environment
Temperature: -50℃～50℃
Humidity: ≤100%RH
Installation
1. Ensure that the mounting bracket is parallel to the ground;
2. As shown in the figure, use screws and nuts to fix the sensor on the mounting bracket through two mounting holes of the sensor;
3. Please avoid removing the sensor during installation.
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
Good feedback from our customers
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
Application
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
Weather Station PV Monitoring Station Agriculture
Ordering process

--In order to send you the specific quotation, please feel free to tell us the following information:

1. The power supply you required -- We have DC5V / DC12V /DC24V for your choices.
2. The output method you required -- We have 4-20mA/0-5V/0-2.5V/RS485/RS232 for your choices.
3. The cable length you required -- The standard is 2.5m, if you want longer, please let me know.
4. The quantity you want to order-- Sample is also welcome.
5. Price-- EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
Company Profile

Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer.
We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.

BGT-SR ABS RS485/Relay Rainfall and snow sensor with optional heating function
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
Our Factory
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
2020 BGT-ZW 280-400nm Solar UV Light Meter 0-5V 4-20mA RS485 Output for PV Monitoring
FAQ

Q1: Are you trading company or manufacturer? A: BGT Technology (Beijing) Co., Ltd. is a trading company 100% holding by Beijing Guoxinhuayuan Technology Co., Ltd. Beijing Guoxinhuayuan Technology Co., Ltd is manufacturer for emergency solutions and producs. Q2. Can I have a free sample for testing ? A: Sample order is acceptable, but need you to pay for the product cost and freight . Q3. What about the lead time? A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days. Q4: Is it OK to print my logo on the products? A: Yes, we support OEM/ODM service. Q5: Do you offer guarantee for the products? A:Yes, we offer 1 year warranty to our products. Q6: Can I visit your company? A: Yes, warmly welcome to visit our company.

Q7. Do you have certifications? A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc. Q8: How is the quality of your goods? A: We make a commitment to offer products with good apperance and nice quality to customers. If there is some questions for the product, we have after-sale team to serve you. And we offer 1 year warranty.
